Home / Products / Plasma cutting & welding machine / LGK-80NK/LGK-100N Built-in pump Plasma cutting 220V/380V Cutting & Stick welding

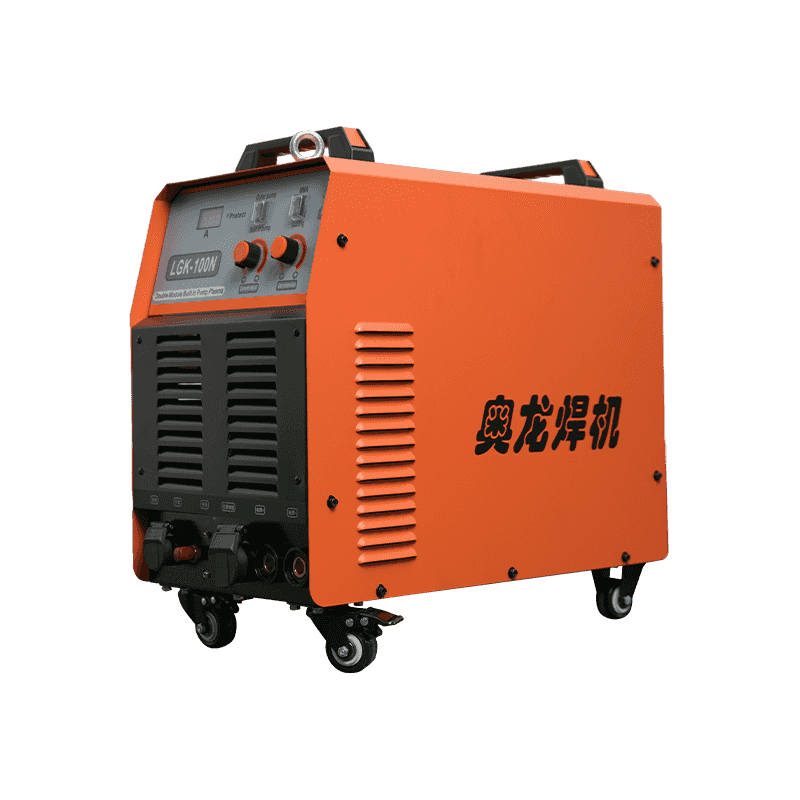

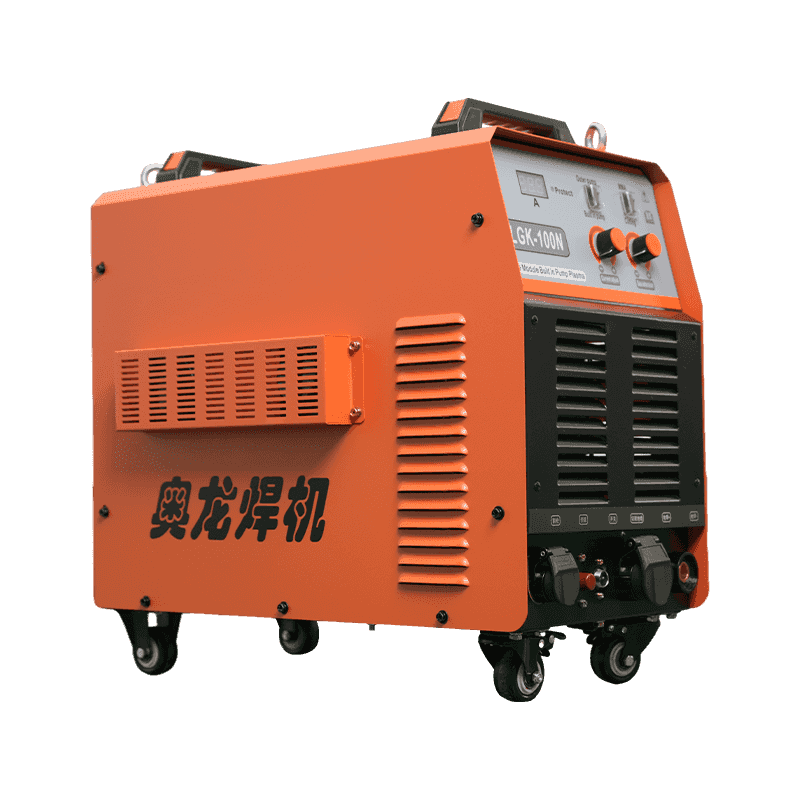

LGK-80NK/LGK-100N Built-in pump Plasma cutting 220V/380V Cutting & Stick welding

1、There are two modes of compressed air source, either a built-in air compressor or an external air source. 2、Two working modes, plasma cutting and manual arc welding. 3、The maximum cutting thickness is 3 cm, and the cutting surface is uniform. 4、Suitable for welding stainless steel,carbon steel,cast iron ,steel and other alloy material. 5、Plasma arc energy is more concentrated, the temperature is higher, the cutting speed is faster, and the deformation is smaller. 6、Cutting speed is higher than flame cutting. 7、Easy to install and operate, machine can be used immediately after powering on, improving work efficiency. 8、Widely used in a wide range of industries, suitable for processing large structural parts such as shipbuilding.

Get A Quote

PREV：LGK-130Y/LGK-160Y Built-in pump Plasma cutting 380V 130A Cutting & Stick welding welding NEXT：No next article

Parameter
Accessories
Contact Us

Model	LGK-80NK
Input voltage (V)	220V/380V
Input power (KVA)	11
Input current (A)	18
Rated output voltage (V)	100
Output current range (A）	30-80
Output no-load voltage (V)	280
Load duty cycle (%)	60
Air pressure for cutting torque (MPa)	0.45-0.55
Max cutting thickness of carbon steel (mm)	30
Cutting air flow (L/min)	180-230
Arc ignition method	high frequency arc ignition
Enclosure protection class	IP21S
Insulation class	H
Dimensions (mm)	665365630
Weight (kg)	35

Model	LGK-100N
Input voltage (V)	AC380V±15% 50Hz
Input power (KVA)	13.7
Input current (A)	20
Rated output voltage (V)	120
Output current range (A）	30-100
Output no-load voltage (V)	319
Load duty cycle (%)	80
Air pressure for cutting torque (MPa)	0.45-0.55
Max cutting thickness of carbon steel (mm)	40
Cutting air flow (L/min)	180-230
Arc ignition method	high frequency arc ignition
Enclosure protection class	IP21S
Insulation class	H
Dimensions (mm)	665365630
Weight (kg)	46

Accessories：

P80 cutter with 5m cable

Spare parts

Filter

2.5m earth wire

300A earth clamp
