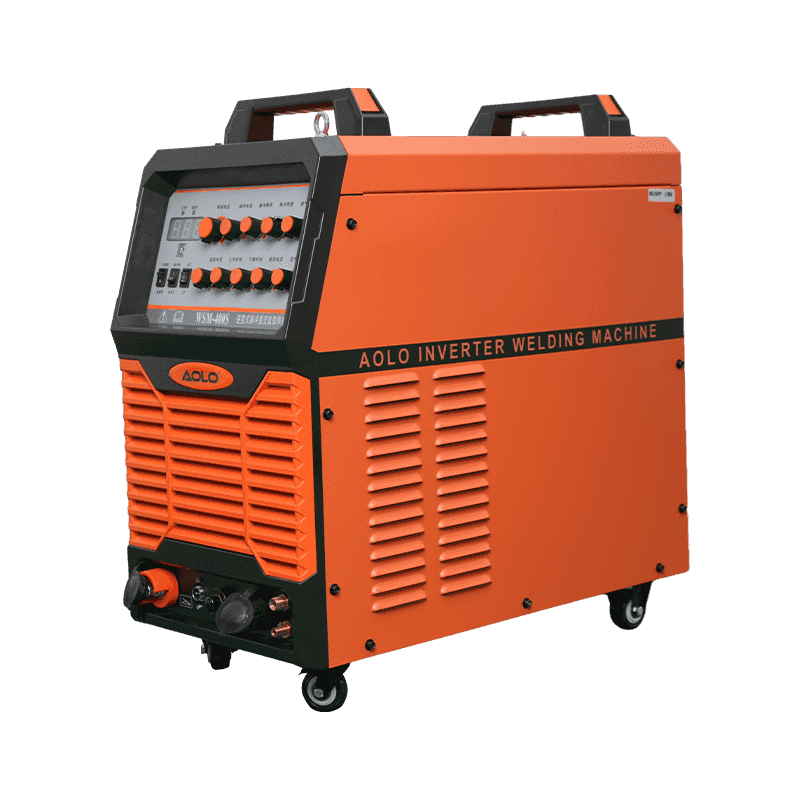

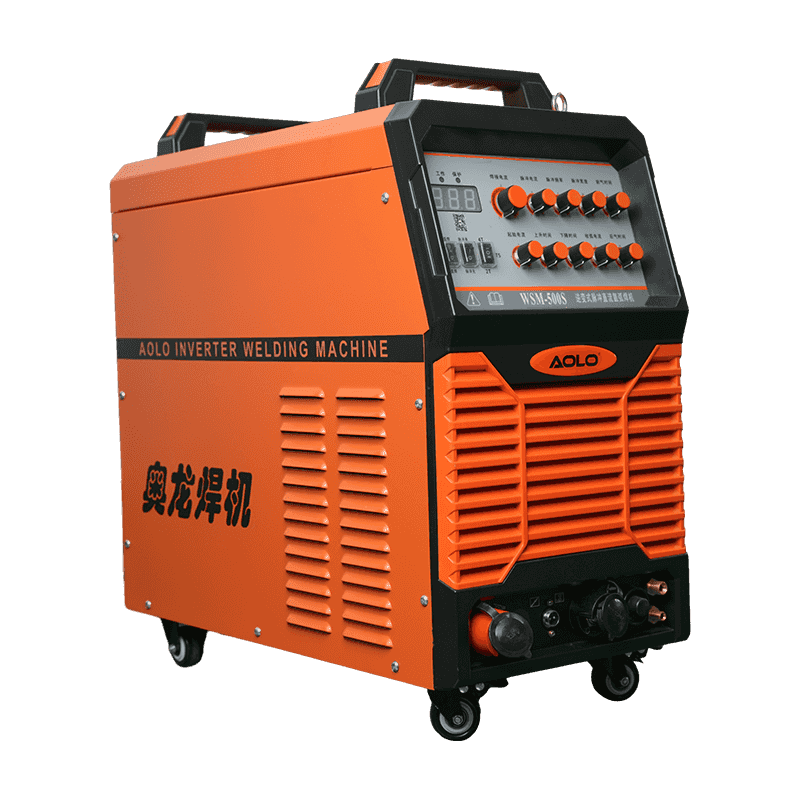

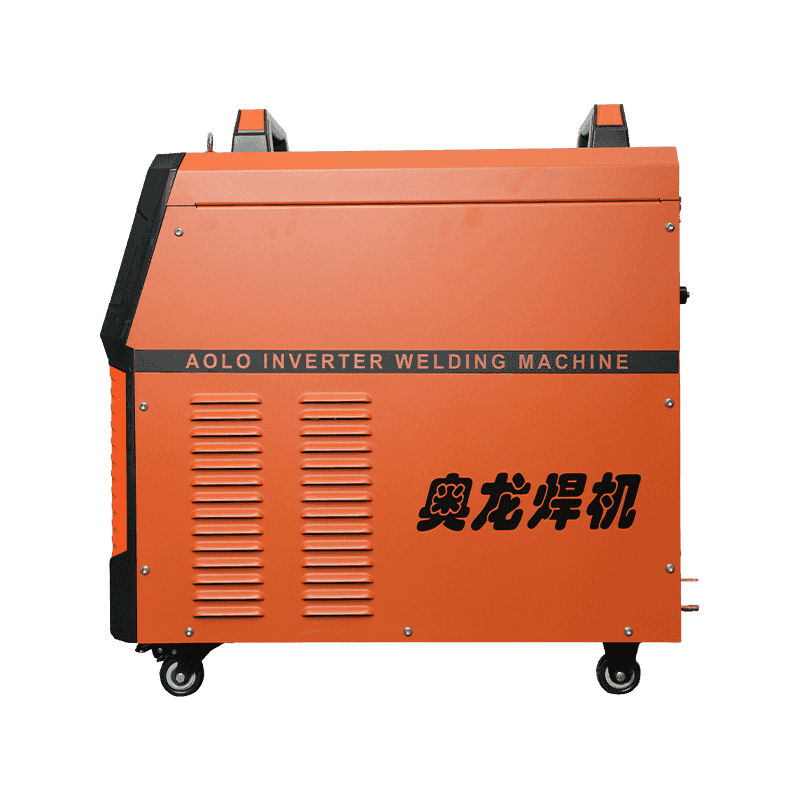

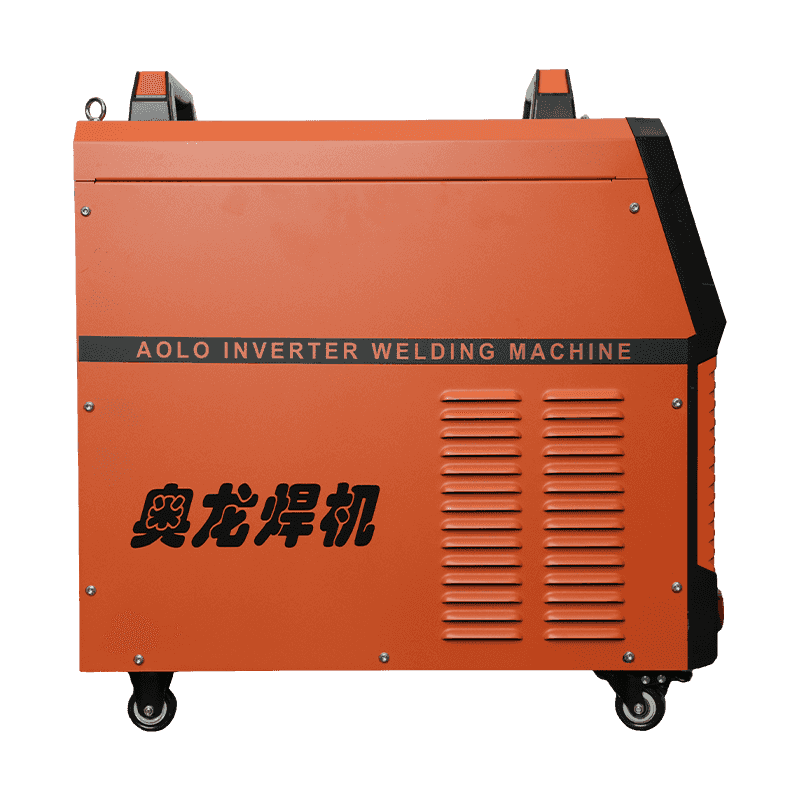

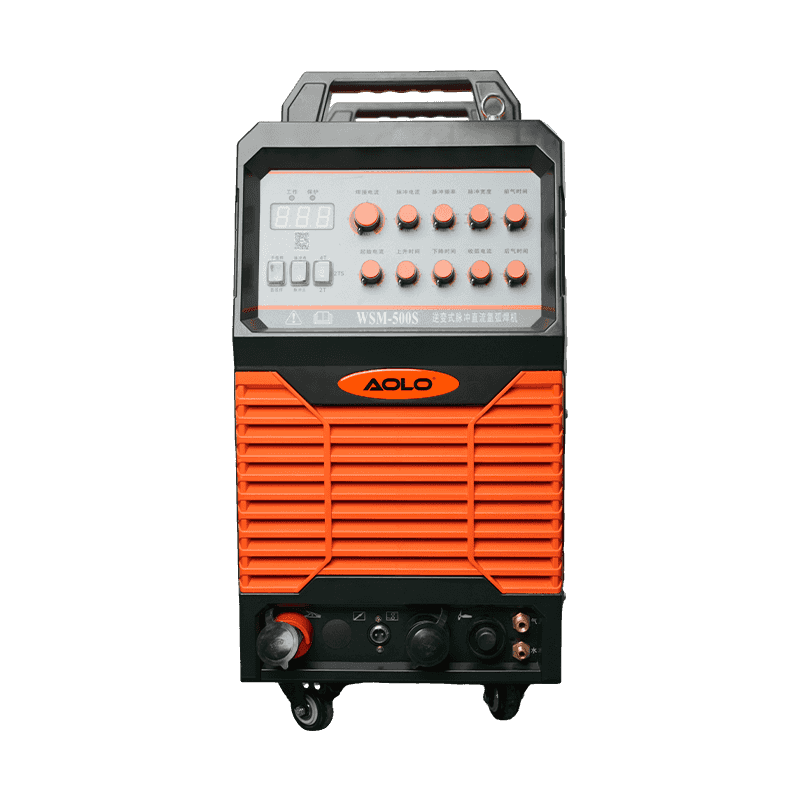

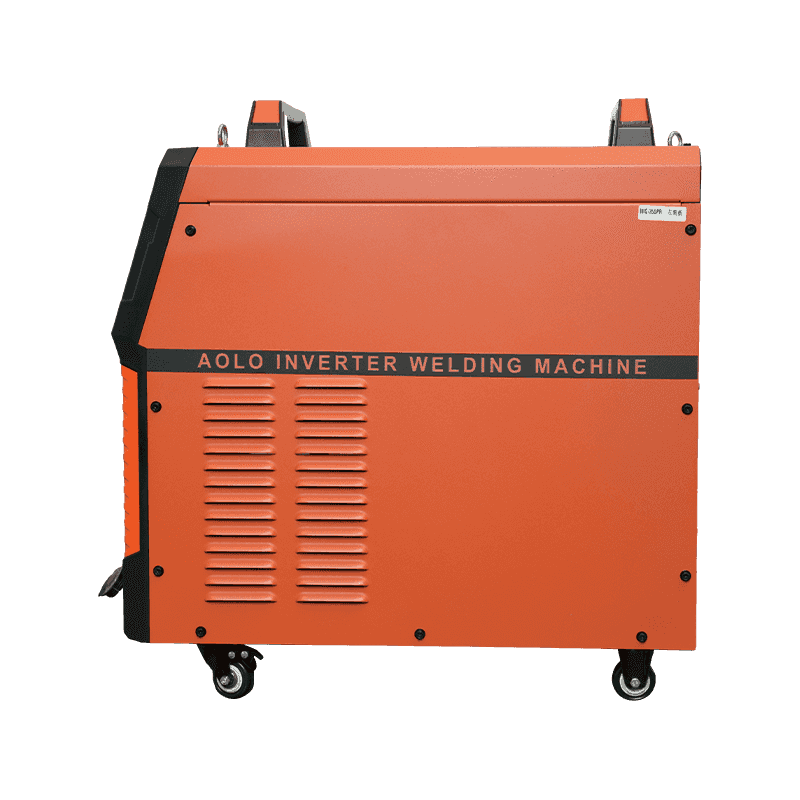

WSM-400S/WSM-500S Pulse TIG 380V 400A IGBT Inverter TIG(GTAW)

1、Pulse outputs a stable current-to-voltage ratio to control welding quality and reduce heat-affected areas. 2、Various parameter adjustments control the fine output of welding current and improve welding performance. 3、Various welding modes can be selected by pressing the button. 4、The time to reach arc intensity is adjustable. 5、Suitable for large-scale batch welding in manufacturing industries. 6、The gas closing time can be set in advance to protect the welding gun and workpiece. 7、Semi-automatic welding switch facilitates long-term welding processes. 8、Two welding functions, manual welding and gas shielded welding. 9、The length of pulse arc time can be adjusted according to the material thickness of the workpiece.

Get A Quote

PREV：WSME-315S/WSME-500S AC/DC Pulse 380V 315A IGBT Inverter TIG(GTAW)NEXT：WS-400S2/WS-500S2 Portable welder 380V 400A IGBT Inverter TIG(GTAW)

Parameter
Accessories
Contact Us

Model	WSM-400S
Input voltage (V)	AC380V±10% 50Hz
Input capacity (KVA)	17
Input current (A)	26
Welding current range (A)	5-400
Load duty cycle (%)	60
Gas supply in advance	0.2-5
Lag gas stopping	1.0-6.0
Current rise time (S)	0.1-10
Current fall time (S)	0.1-10
Full load efficiency (%)	92
Power factor (η)	0.95
Dimensions (mm)	285490525
Weight (kg)	24

Model	WSM-500S
Input voltage (V)	AC380V±10% 50Hz
Input capacity (KVA)	24
Input current (A)	36
Welding current range (A)	8-500
Load duty cycle (%)	60
Gas supply in advance	0.2-5
Lag gas stopping	1.0-6.0
Current rise time (S)	0.1-10
Current fall time (S)	0.1-10
Full load efficiency (%)	92
Power factor (η)	0.95
Dimensions (mm)	285490525
Weight (kg)	32

Accessories：

WP-18 welding gun with 5m cable

Spare parts bag

Argon regulator

Gas hose

2.5m earth wire

300A earth clamp
